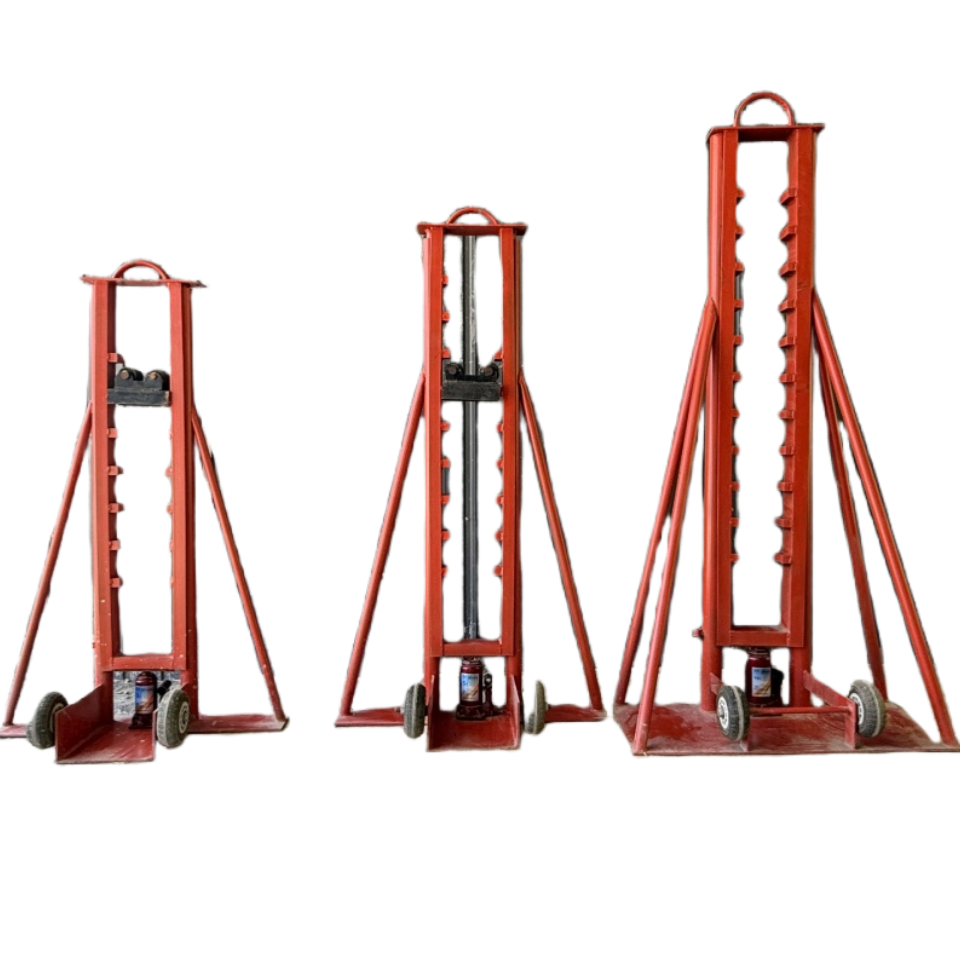

cable drum jack

Core Advantages

1. High Load Capacity & Stable Structure

The whole stand is welded with thickened square pipes, and the triangular support frame features excellent deformation resistance. The large-tonnage models can bear several tons of heavy cable reels without shaking or tipping over during the paying-off process, ensuring stable construction.

2. Labor-Saving Hydraulic Lifting

Equipped with a high-performance hydraulic jack, the stand allows a single worker to easily lift heavy cable reels, eliminating the need for manual prying and lifting by multiple workers. The lifting height is adjustable on demand, compatible with cable reels of different inner diameters.

3. Flexible & Portable with Casters

The base is fitted with universal and directional casters, enabling direct pushing and transportation on construction sites. No forklift is required for assembly, disassembly and movement, making it adaptable to various scenarios including outdoor sites, underground wells and factories.

4. Wide Compatibility & Flexible Adjustment

The frame is designed with multi-gear adjusting holes, and the penetrating shaft fits various sizes of cable reels, optical fiber reels and steel wire rope reels. Some models support brake installation to control paying-off speed and prevent reel runaway accidents.

5. Durable & Low Maintenance

The overall surface is spray-painted for rust prevention. The hydraulic jack has a low failure rate with easily replaceable accessories. The sturdy steel frame is impact-resistant, free from rust and damage even after long-term outdoor construction use.

6. Safe & Efficient Operation

It supports cable reels in a suspended state, enabling smooth paying-off without friction and scratch on cable sheaths caused by ground contact. It effectively reduces cable wear and twisting, lowering construction loss and potential safety hazards.

Main Applications

1. Electric Power Engineering Construction

It is widely used for lifting full-length cable reels and realizing uniform paying-off during the underground laying, bridge laying and substation wiring of high-voltage and low-voltage power cables. It is a frequently used tool for rural power grid renovation and residential district power distribution construction.

2. Communication Optical Fiber Laying

Suitable for supporting and paying off large reels of overhead optical cables, pipeline optical cables and monitoring optical fibers, protecting optical fiber cores from extrusion and bending damage.

3. Other Cable & Pipe Operations

Applicable for unwinding and rewinding operations of steel wire ropes, steel strands, communication feeders and large-diameter electric wire reels, as well as equipment wiring in factories and tunnel pipeline engineering.

4. On-Site Transfer & Temporary Storage

Cable reels can be directly erected on the stand for temporary storage after arrival, avoiding stacking pressure on the ground. It saves storage space and realizes instant access and paying-off for improved work efficiency.
