Application of Heavy-Duty Wire Rope Mesh Cable Pulling Socks in Underground and Industrial Installations

I. Challenges in Heavy-Load Cable Construction Heavy Weight

One of the most prominent challenges in heavy-load cable construction is the significant weight of the cables. These cables, often used to transmit large amounts of electrical power or high-speed data, are constructed with thick conductors and multiple layers of insulation to ensure reliable performance. As a result, they can be extremely heavy, making handling and installation a difficult task. The weight of the cables not only requires specialized lifting equipment but also increases the risk of accidents during transportation and installation, such as cable drops or equipment failures.

Complex Construction Environments (Underground and Industrial Sites)

The construction environments for heavy-load cables are often complex and challenging. In underground installations, cables need to be laid through narrow tunnels, pipes, or conduits, which may be filled with debris, water, or other obstacles. The limited space and difficult access make it hard to maneuver the cables and install them properly. Additionally, underground conditions can be harsh, with high humidity, temperature variations, and potential chemical corrosion, all of which can affect the performance and lifespan of the cables.

In industrial sites, the environment is equally challenging. There may be a large number of machinery, equipment, and structures that interfere with cable installation. The presence of dust, vibrations, and electromagnetic interference can also pose risks to the cables. Moreover, industrial operations often require continuous power supply, so any disruption during cable installation can have a significant impact on production efficiency.

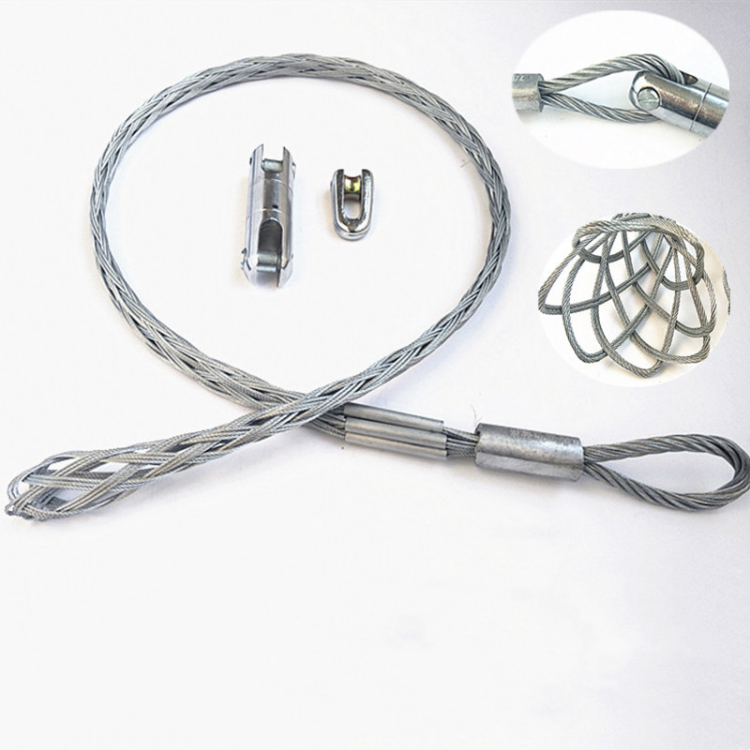

II. Introduction to Heavy Duty Wire Rope Mesh Cable Pulling Sock

High-Tensile Wire Rope

The Heavy Duty Wire Rope Mesh Cable Pulling Sock is constructed using high-tensile wire rope as its core material. This wire rope is made from premium-grade steel wires that are twisted together to form strong strands, which are then further braided to create a robust and durable rope. The high tensile strength of the wire rope enables it to withstand extremely high pulling forces without breaking or deforming, making it ideal for handling heavy-load cables during installation.

Encrypted Braided Mesh Structure

In addition to the high-tensile wire rope, the pulling sock features an encrypted braided mesh structure. This mesh is formed by interweaving the wire rope strands in a complex pattern, creating a dense and uniform network. The encrypted braiding not only enhances the overall strength of the pulling sock but also provides a secure grip on the cable. The mesh structure conforms to the shape of the cable, distributing the pulling force evenly across its surface, which helps to prevent slippage and damage during installation.

III. Advantages in Underground Installations

Adapting to Narrow Pipes

One of the key advantages of the Heavy Duty Wire Rope Mesh Cable Pulling Sock in underground installations is its ability to adapt to narrow pipes. The flexible mesh structure allows the pulling sock to be easily inserted into pipes of various diameters, even those with tight bends or restrictions. Once inside the pipe, the pulling sock can expand slightly to grip the cable securely, ensuring smooth and efficient installation. This adaptability eliminates the need for specialized pipe-fitting equipment or complex installation procedures, saving time and reducing costs.

Abrasion Resistance

Underground environments can be abrasive, with rough pipe walls, sharp edges, and debris that can damage cables during installation. The Heavy Duty Wire Rope Mesh Cable Pulling Sock is designed to resist abrasion, thanks to its high-quality wire rope and durable mesh structure. The wire rope is coated with a protective layer that reduces friction and wear, while the dense mesh provides an additional layer of protection for the cable. This abrasion resistance helps to extend the lifespan of the cables and ensures reliable performance in harsh underground conditions.

Stable Pulling Force

Maintaining a stable pulling force is crucial during underground cable installation to prevent cable damage and ensure accurate positioning. The Heavy Duty Wire Rope Mesh Cable Pulling Sock excels in this regard, as its encrypted braided mesh structure distributes the pulling force evenly across the cable. This even distribution of force helps to prevent stress concentrations and cable deformation, ensuring that the cable is pulled smoothly and steadily through the pipe. The stable pulling force also reduces the risk of cable snagging or getting stuck, improving the overall efficiency of the installation process.

IV. Industrial-Grade Application Cases

Factory Power Wiring

In factories, reliable power supply is essential for the smooth operation of machinery and equipment. The Heavy Duty Wire Rope Mesh Cable Pulling Sock is widely used in factory power wiring projects to install heavy-load power cables. Its high tensile strength and secure grip ensure that the cables can be safely and efficiently pulled through complex factory layouts, including around machinery, over beams, and through walls. The durability of the pulling sock also means that it can withstand the rigors of industrial environments, providing long-lasting performance and reducing the need for frequent replacements.

Power Supply for Large Equipment

Large industrial equipment, such as generators, compressors, and conveyor systems, require high-capacity power cables to operate effectively. The Heavy Duty Wire Rope Mesh Cable Pulling Sock is an ideal choice for installing these cables, as it can handle the heavy weight and high pulling forces involved. Its ability to adapt to different installation scenarios, whether it's running cables along the floor, up walls, or through conduits, makes it a versatile solution for powering large equipment in industrial settings.

Communication Trunk Lines

In addition to power cables, communication trunk lines are also crucial in industrial facilities for transmitting data and signals between different parts of the plant. The Heavy Duty Wire Rope Mesh Cable Pulling Sock can be used to install these communication cables, providing a secure and reliable installation method. Its anti-slip design and stable pulling force ensure that the communication cables are installed accurately and without damage, maintaining the integrity of the communication network and preventing signal interruptions.

V. Why Heavy-Load Projects Must Choose High-Tensile Pulling Socks

Safety

Safety is of paramount importance in heavy-load projects, where the consequences of cable failure or installation accidents can be severe. The Heavy Duty Wire Rope Mesh Cable Pulling Sock enhances safety in several ways. Its high tensile strength and secure grip on the cable prevent cable slippage or breakage during installation, reducing the risk of accidents such as cable drops or equipment damage. Additionally, the durable construction of the pulling sock ensures that it can withstand the harsh conditions of heavy-load projects, minimizing the chances of failure and ensuring the safety of construction personnel.

Durability

Heavy-load projects often involve long-term use and exposure to harsh environments, so durability is a key factor in selecting installation equipment. The Heavy Duty Wire Rope Mesh Cable Pulling Sock is made from high-quality materials and features a robust design that can withstand the wear and tear of repeated use. Its abrasion-resistant wire rope and encrypted braided mesh structure ensure that it can handle the challenges of underground and industrial installations, providing reliable performance over an extended period. This durability reduces the need for frequent replacements, saving time and costs in the long run.

Reducing Long-Term Maintenance Costs

By choosing a high-tensile pulling sock like the Heavy Duty Wire Rope Mesh Cable Pulling Sock, heavy-load projects can significantly reduce long-term maintenance costs. The durable construction and reliable performance of the pulling sock mean that cables are installed correctly and securely, minimizing the risk of damage or failure during operation. This reduces the need for costly repairs or replacements of cables, as well as the associated downtime and production losses. Additionally, the stable pulling force provided by the pulling sock helps to prevent cable stress and deformation, extending the lifespan of the cables and further reducing maintenance costs over time.
