Hydraulic Cable Drum Stand & Cable Reel Jack: A Complete Guide for Modern Cable Installation

1. Introduction

In today’s fast-evolving construction and infrastructure industries, cable installation has become increasingly complex and demanding. Projects such as power grid expansion, telecommunications deployment, and renewable energy installations require handling large and heavy cable drums efficiently.

Traditional cable handling methods often rely on manual labor or basic tools, which can lead to low efficiency, safety risks, and increased operational costs. These limitations highlight the need for more advanced and reliable equipment.

Hydraulic cable drum stands have emerged as an essential solution, offering improved safety, efficiency, and adaptability. They are widely used to support, lift, and unwind cable drums in a controlled and secure manner.

2. Product Overview

A Cable Drum Stand, also known as a Cable Reel Stand or Drum Jack, is a mechanical device designed to hold and support cable drums during installation or storage. It allows the cable to be smoothly unwound without tangling or damage.

The key distinction lies between hydraulic and manual cable stands:

Hydraulic cable drum stands use a hydraulic system to lift heavy drums with minimal effort, making them ideal for large-scale operations.

Manual cable drum jacks rely on mechanical lifting, suitable for smaller or less demanding tasks.

These tools are widely applied across multiple industries, including:

Construction sites

Power transmission and distribution projects

Telecommunications and fiber optic installations

Industrial facilities and marine environments

3. Structure and Working Principle

Hydraulic cable drum stands are engineered for both performance and durability. Their main components include:

Hydraulic lifting system: Enables smooth and effortless height adjustment, reducing manual labor.

Adjustable width and height: Allows compatibility with various cable drum sizes.

Anti-slip base: Ensures stability during operation, even on uneven surfaces.

Quick-release clamp: Facilitates fast setup and removal of cable drums.

Heavy-duty steel frame: Provides strong load-bearing capacity and long-term durability.

The working principle is simple: the cable drum is mounted onto the stand, lifted to the required height using the hydraulic system, and then rotated freely for controlled cable unwinding.

4. Main Types of Cable Drum Stands

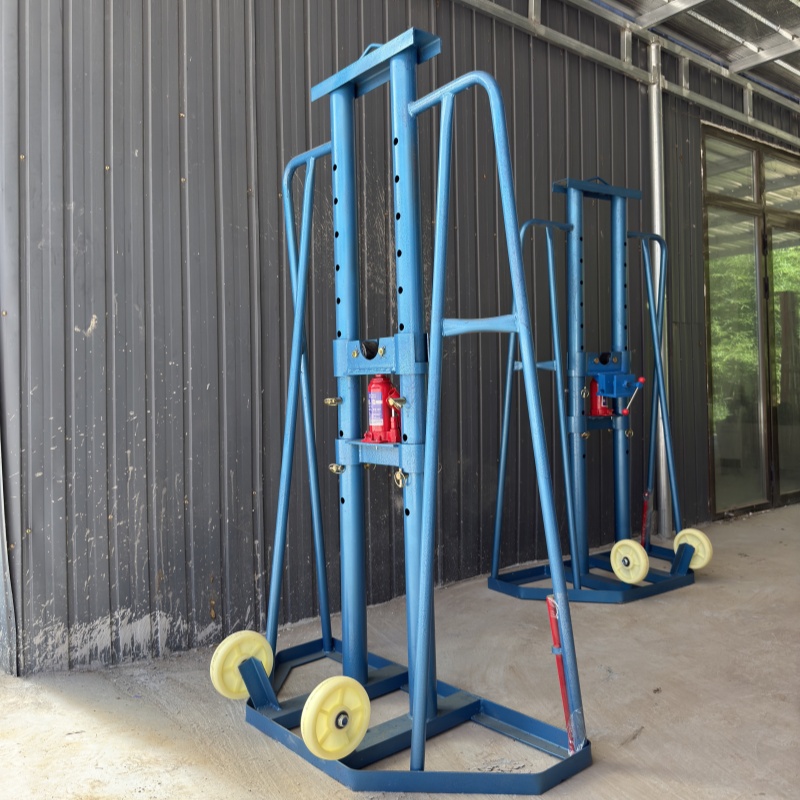

4.1 Hydraulic Cable Reel Stand

Hydraulic stands are designed for heavy-duty applications. They significantly reduce physical effort and are ideal for handling large and heavy cable drums in construction and industrial projects.

4.2 Manual Cable Drum Jack

Manual drum jacks are cost-effective and easy to operate. They are best suited for light to medium-duty applications where hydraulic systems are not necessary.

4.3 Fixed Cable Drum Stand

Fixed stands offer maximum stability and durability. They are commonly used in warehouses or storage areas where cable drums need to remain in place for extended periods.

4.4 Adjustable Cable Drum Stand

Adjustable stands provide flexibility in both width and height, making them compatible with a wide range of drum sizes. They are highly versatile and suitable for various working conditions.

5. Key Advantages

Hydraulic cable drum stands offer several significant benefits:

High load-bearing capacity: Designed for heavy-duty industrial use

Improved efficiency: Reduces manual labor and speeds up installation

Enhanced safety: Minimizes risks associated with manual handling

Versatility: Suitable for construction, industrial, and marine environments

Corrosion resistance: Special coatings extend service life, especially in harsh conditions

6. Application Scenarios

Cable drum stands are widely used in various scenarios, including:

Cable laying on construction sites

Overhead power line installation

Underground cable routing projects

Renewable energy installations such as wind and solar farms

Port operations and marine engineering projects

These applications demand reliable equipment to ensure smooth and safe cable deployment.

7. Selection Guide

Choosing the right cable drum stand depends on several factors:

Drum size: Consider diameter and width of the cable drum

Load capacity: Ensure the stand can handle the required weight

Operation type: Decide between hydraulic and manual systems

Environment: Select corrosion-resistant models for outdoor or marine use

Mobility: Choose portable or fixed designs based on project needs

A proper selection ensures optimal performance and long-term reliability.

8. Operation and Safety Tips

To ensure safe and efficient operation, follow these guidelines:

Install the cable drum correctly and securely

Always use the stand on stable and level ground

Avoid exceeding the maximum load capacity

Regularly inspect hydraulic components for wear or leaks

Use appropriate personal protective equipment (PPE)

Proper handling not only improves efficiency but also reduces the risk of accidents.

9. Industry Trends

The cable installation industry continues to evolve with technological advancements:

Smart equipment: Integration of sensors and automation for better control

Lightweight materials: Use of advanced composites to improve portability

Modular design: Easier transportation and faster assembly

Renewable energy demand: Increasing need for cable installation tools in wind and solar projects

These trends are driving innovation in cable handling equipment.

10. Conclusion

Cable drum stands have become indispensable tools in modern cable installation projects. Their ability to improve efficiency, ensure safety, and adapt to different environments makes them a critical asset for professionals.

Hydraulic and adjustable designs, in particular, represent the future of cable handling solutions, providing superior performance for demanding applications. Investing in high-quality cable drum stands is essential for achieving efficient and reliable cable installation operations.
