Technical Analysis and Selection Guide for Road Construction Dedicated Measuring Wheels

Introduction

Road construction surveying is a critical process to ensure engineering quality. As a key tool, the evolution of dedicated measuring wheels directly enhances construction efficiency and accuracy. Based on the DouDing Network report, this guide systematically analyzes the technical characteristics of mechanical, electronic, and laser measuring wheels, proposes scenario-based selection strategies, and validates technical value through empirical cases.

Technical Classification and Core Parameters Analysis

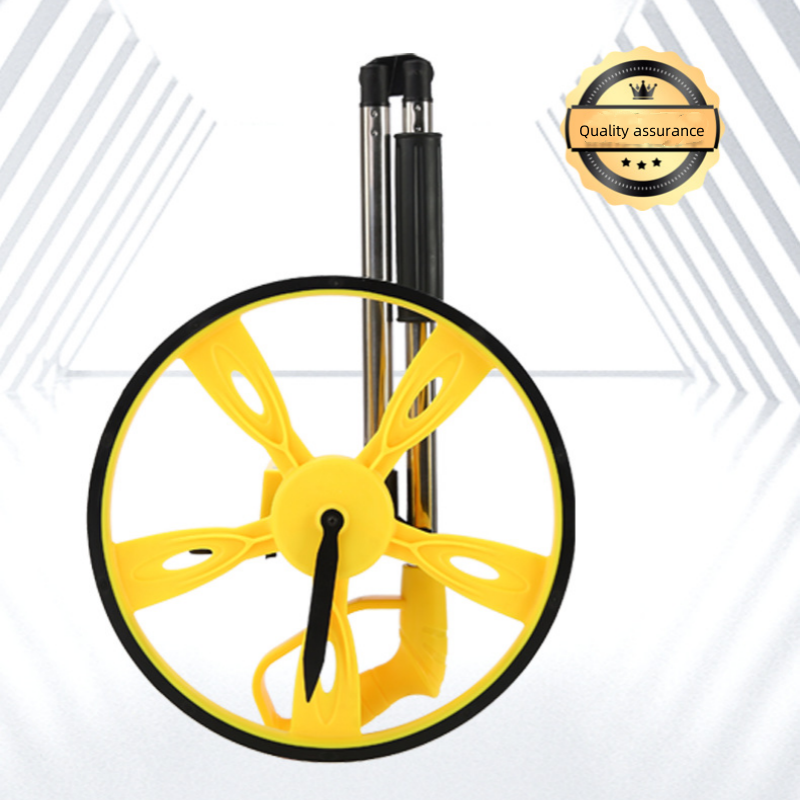

1. Mechanical Measuring Wheel

Wheel Diameter Design: Typically adopts large-diameter (≥500mm) design to minimize counting interference from ground bumps, but oversized diameters reduce portability.

Material Selection: High-density composite rubber wheels improve wear resistance and anti-slip properties. On asphalt surfaces, friction coefficient stability increases by 30% compared to ordinary rubber, ensuring counting accuracy.

Display Method: Mechanical counters use gear transmission for distance accumulation. Errors mainly stem from gear clearance, with accuracy controlled within 0.5% at low speeds (＜30km/h). High-speed scenarios may cause counting lag due to inertia.

2. Electronic Measuring Wheel

Wheel Diameter and Sensor Integration: Medium-small diameter (300-400mm) paired with encoders enables high-precision counting. Software algorithms compensate for wheel diameter errors, achieving ≤0.1% accuracy at 120km/h operation.

Display Method: Digital screens provide real-time data on distance, speed, and environmental parameters, supporting export to construction management systems for enhanced traceability.

3. Laser Measuring Wheel

Non-Contact Measurement Principle: Utilizes laser ranging modules to scan road surfaces, generating point cloud data with densities up to 100 points/m², suitable for high-precision topographic mapping.

Material and Anti-Interference: Carbon fiber wheel frames reduce weight, while laser sensors feature dust and mist resistance, maintaining 90% accuracy in rainy/foggy conditions.

Selection Strategies and Scenario Adaptation

Highway-Level Scenarios: Require ≤0.1% error tolerance at 120km/h operation. Electronic wheels with GNSS+IMU integrated positioning are recommended for dynamic error compensation and stability in high-speed environments.

Urban Road Scenarios: GNSS+IMU integrated electronic wheels address frequent turning demands in complex urban routes (e.g., curves, intersections). Inertial navigation compensates for GNSS signal blockages, enabling continuous measurements.

Municipal Engineering Scenarios: Emphasize foldable portability and impact resistance. Mechanical wheels with aluminum alloy frames and foldable handles weigh ≤8kg, achieving IK10 impact resistance for frequent site transport and accidental drops.

Empirical Case: Shanghai Highway Project

In a Shanghai highway expansion project, electronic measuring wheels were deployed for full-line distance resurveying, achieving daily operation volumes of 40-60km—20 times higher than traditional manual methods. Laser point cloud scanning achieved 100 points/m² density, identifying and correcting three subgrade settlement deviations in original design drawings, ensuring compliance with construction standards.

Conclusion

The technological evolution of road construction dedicated measuring wheels is accelerating toward high precision, intelligence, and scenario adaptation. Selection requires holistic consideration of operational scenarios, speed requirements, accuracy metrics, and portability needs. Rational choice and parameter optimization of mechanical, electronic, or laser wheels can significantly enhance construction efficiency and engineering quality, driving digital transformation in the road construction industry.
