Innovative Applications of Foldable and Portable Measuring Wheels in Engineering

Introduction

The Need for Engineering Innovation in Measuring Tools

In the field of engineering measurement, traditional tools often face challenges such as bulkiness, complex operation, and poor environmental adaptability. With the diversification of engineering scenarios, foldable and portable measuring wheels, leveraging structural innovation and functional integration, are becoming core tools in scenarios like field exploration, landscape construction, and emergency rescue. Their innovative applications are driving engineering measurement toward lightweight and intelligent evolution.

I. Design Advantages: Structural Reconstruction and Functional Breakthroughs

Revolutionary Space Compression with Foldable Structures

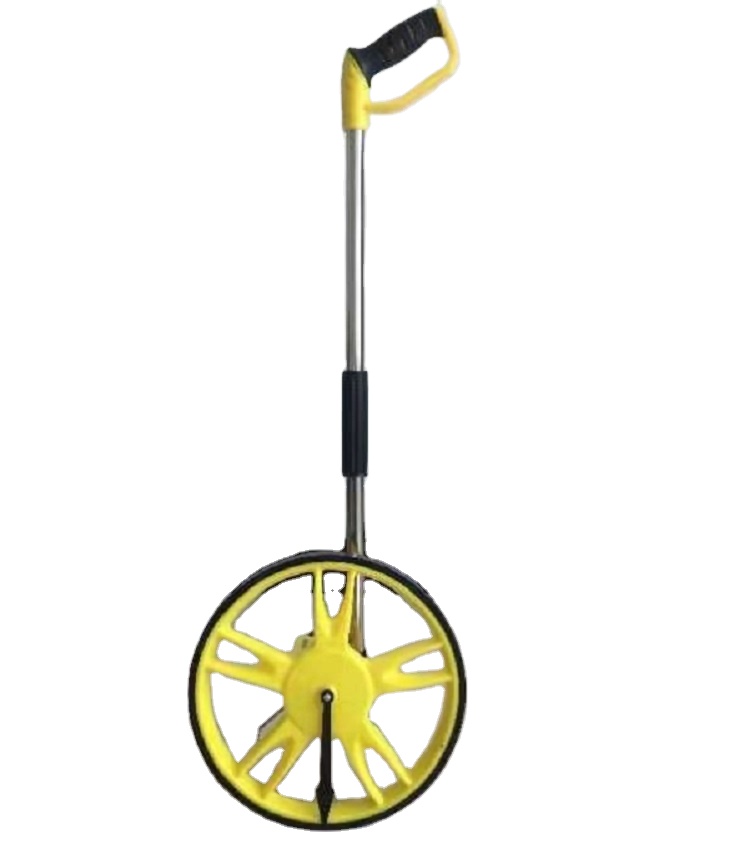

The foldable measuring wheel, featuring a three-section telescopic rod design, achieves a 50% volume reduction through modular folding mechanisms. This design shrinks storage dimensions from 1.2m × 0.3m of traditional models to 0.6m × 0.15m, allowing easy storage in engineering backpacks or vehicle trunks. Combined with night-vision digital display technology, operators can clearly read measurement data even in dim environments like tunnels or underground pipelines, avoiding errors caused by poor lighting.

Lightweight Breakthrough of Portable Models

Portable measuring wheels, utilizing aerospace-grade aluminum alloy frames and carbon fiber composite materials, weigh under 2kg, enabling single-handed operation. Ergonomic handles with anti-slip textures ensure stable grip on wet or sloped surfaces. Integrated electronic compasses and spirit levels provide real-time trajectory calibration, enhancing measurement accuracy on complex terrains.

II. Scenario-Specific Applications: Precise Adaptation to Engineering Needs

Field Exploration: Impact Resistance and Terrain Adaptation

In field scenarios like geological surveys and mining measurements, foldable wheels equipped with 13mm thickened tires made of high-strength rubber effectively withstand sharp impacts from gravel surfaces. Built-in gyroscopic sensors automatically compensate for measurement errors caused by terrain undulations, ensuring data deviations of less than 0.5% within 5% slope ranges.

Landscape Architecture: Laser Ranging for Boundary Revolution

In landscape projects, the laser ranging module of portable wheels precisely delineates irregular boundaries like flower beds and tree pits. Real-time 3D terrain modeling via Bluetooth-connected mobile apps enables integrated "measurement-design-construction" workflows. For instance, in a city park renovation project, this technology reduced boundary positioning time by 70% and construction errors to within 2cm.

Emergency Rescue

Rapid Deployment and Collaborative Operations

In disaster scenarios like earthquakes or floods, the quick deployment capability of portable wheels (within 30 seconds) is critical for temporary road marking and post-disaster reconstruction measurements. Integrated GPS modules upload real-time data to command centers, while UAV-mounted systems enable air-ground collaborative measurements for rapid 3D modeling of disaster areas, supporting rescue path planning.

III. Future Trends: Material Innovation and Air-Ground Collaboration

Lightweight Evolution with Carbon Fiber Materials

Future measuring wheels will adopt carbon fiber-reinforced composites to further reduce weight while maintaining structural strength. Magnetic accessory expansion systems allow rapid module swaps (e.g., laser rangefinders, infrared cameras), enabling flexible "one-machine-multi-function" configurations.

UAV-Mounted Air-Ground Collaborative Measurement

Through magnetic interfaces compatible with UAVs, foldable wheels enable air-ground collaborative measurement modes. In large-scale infrastructure projects, UAV-mounted wheels perform aerial contour scanning while ground units handle detailed measurements. Data fusion generates high-precision 3D terrain maps, boosting measurement efficiency by 3x and reducing costs by 40%.

Conclusion

The Intelligent Future of Engineering Measurement

Foldable and portable measuring wheels, through structural innovation, functional integration, and material evolution, are redefining engineering measurement boundaries. From field exploration to emergency rescue, landscape construction to air-ground collaboration, their applications enhance efficiency and precision while driving intelligent, modular development. As carbon fiber materials, magnetic accessories, and UAV technologies mature, future measuring wheels will serve as "intelligent measurement terminals," continuously empowering the digital transformation of engineering construction.
